Custom Single 10 Sub Box Enclosure Package L4366

This Package Includes the Following Items:

• 1 x Universal Fit Single 10' Subwoofer Sealed Replacement Spare Tire Custom Sub Box
• 1 x Alpine R-W10D4 Car Audio Type R Series Sub Dual 4 Ohm 1500W Peak 10' Subwoofer

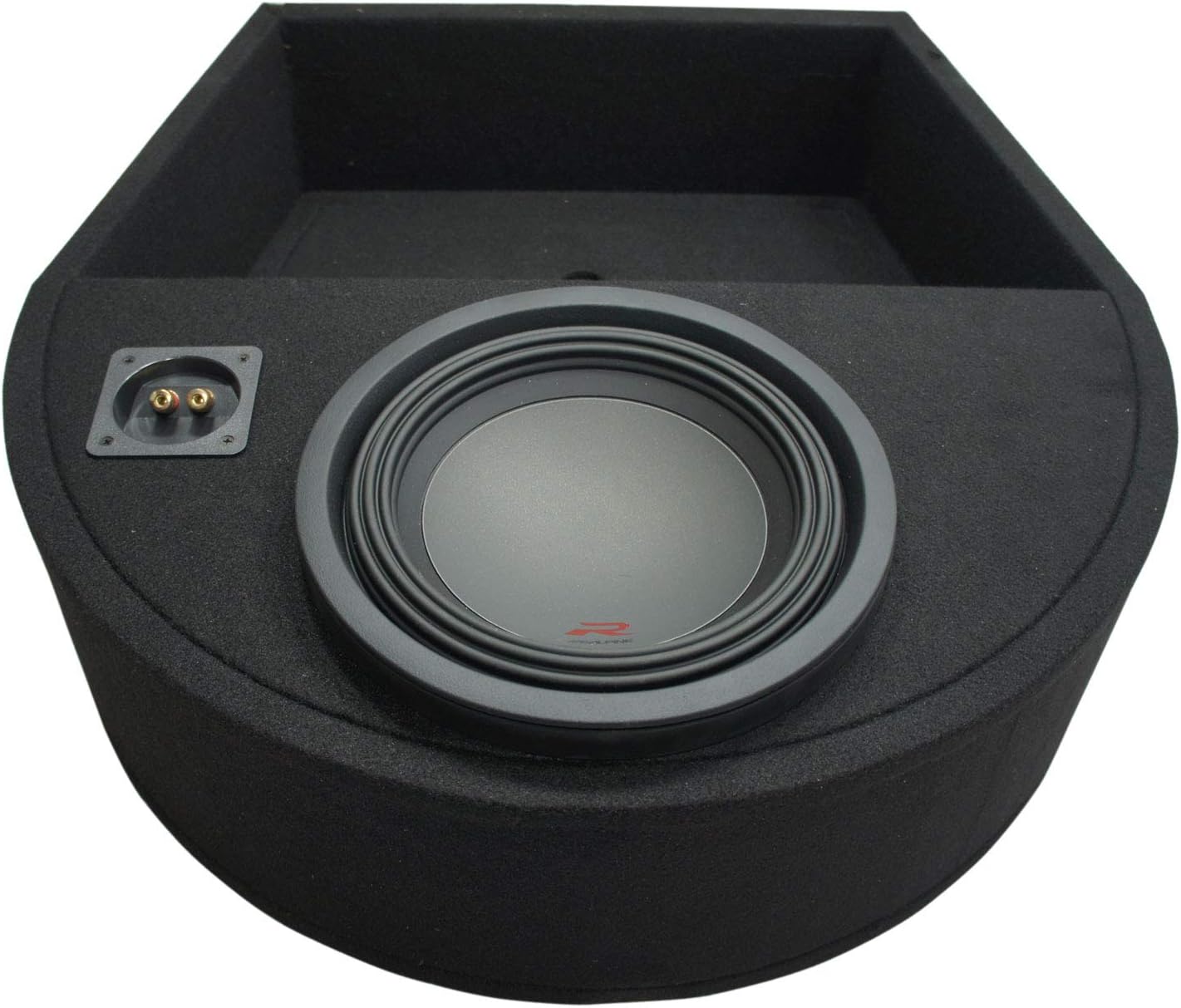

Universal Fit Single 10' Subwoofer Sealed Replacement Spare Tire Custom Sub Box:

Features:

• Universal Fit Spare Tire Replacement Single 10' Subwoofer Enclosure Sub Box
  • Mounting Depth: 5-3/4'
  • Air Space: 0.70 Cubic Feet
  • Sealed Enclosure
• Constructed with High Quality MDF
• High Quality Twist Knob / Banana Plug Terminal Cup (Bare Wire 'up to 10GA')
• High Quality Black Carpet
• Built in Amp Rack
• Overall Dimensions: 24-1/2' L x 25-1/2' W x 7-3/8' H
• Max Amp Size: 16' L x 11' W x 5 1/2' H
• Enclosure installs in spare tire well, remove spare

This box fits:

• Universal Fit

Alpine R-W10D4 Car Audio Type R Series Sub Dual 4 Ohm 1500W Peak 10' Subwoofer:

• General Features:
  • 10' Dual 4 ohm Type-R Subwoofer
  • Power Handling:
    • Peak: 2250watts
    • RMS: 750 watts
  • Recommended power range: 300 - 750W RMS
  • CTA-2031 compliant power ratings
  • Parabolic pulp/kevlar cone
  • H.A.M.R. surround
  • Polypropylene, mica and talc dust cap
  • Reinforced cone neck and spider joint
  • Cast aluminum frame with integral shorting sleeve
  • 8AWG push terminals with VC configuration jumpers
  • 2.6' High excursion overhung voice coil
  • 111 oz. Strontium ferrite segmented magnet
  • Top-mount depth: 5-7/8'
  • Cutout diameter: 9-1/16'
  • Frequency Response: 26 - 200Hz
  • Sensitivity: 82.4dB
  • Resonance Frequency (Fs): 31Hz
